Ultra Prime T1.9 Lenses Arri / Zeiss

Wide & Straight – A Unique New Look

The Ultra Prime 8R/T2.8 is an extreme wide angle lens with a unique look unparalleled by any other lens in the film or video world. Because of its rectilinear design it shows an extremely wide angle of view without any of the commonly associated fisheye distortions.
This unique perspective opens new creative opportunities. The Ultra Prime 8R can be used for exhilarating high-speed point-of-view shots, amplifying the apparent speed of movement and putting the viewer right in the middle of the action. Since wide angle lenses exaggerate depth perception, this lens can make any space seem larger than it really is, without showing the telltale distortion of conventional wide angle lenses. For grand establishing shots, walls will look straight even when they are at the edge of the frame. Because of its enormous depth of field and straight image geometry, it is also very useful for shooting miniatures. The Ultra Prime 8R is the ideal lens for sweeping vistas, the interiors of cars, small rooms, unusual angles, wild music videos, underwater filming and many other applications where a fresh new look is required.

The highest quality extreme wide angle lens ever built

Extremely wide, but straight lines stay straight

  • unique look
  • covers Super 35
  • exaggerates speed: ideal for chase sequences
  • exaggerates spaciousness: ideal for establishing shots or small rooms
  • wide angle without fisheye distortions: ideal for miniatures & underwater

Small size & light weight- Ultra Prime optical quality:

  • high contrast and resolution
  • T* XP coating ensures flare resistance for deeper, richer blacks
  • minimized chromatic aberration
  • minimized geometric distortion

Super Color Matched to

  • Master Primes
  • Ultra Primes
  • Lightweight Zoom LWZ1
  • Variable Primes
  • Ultra 16 lenses

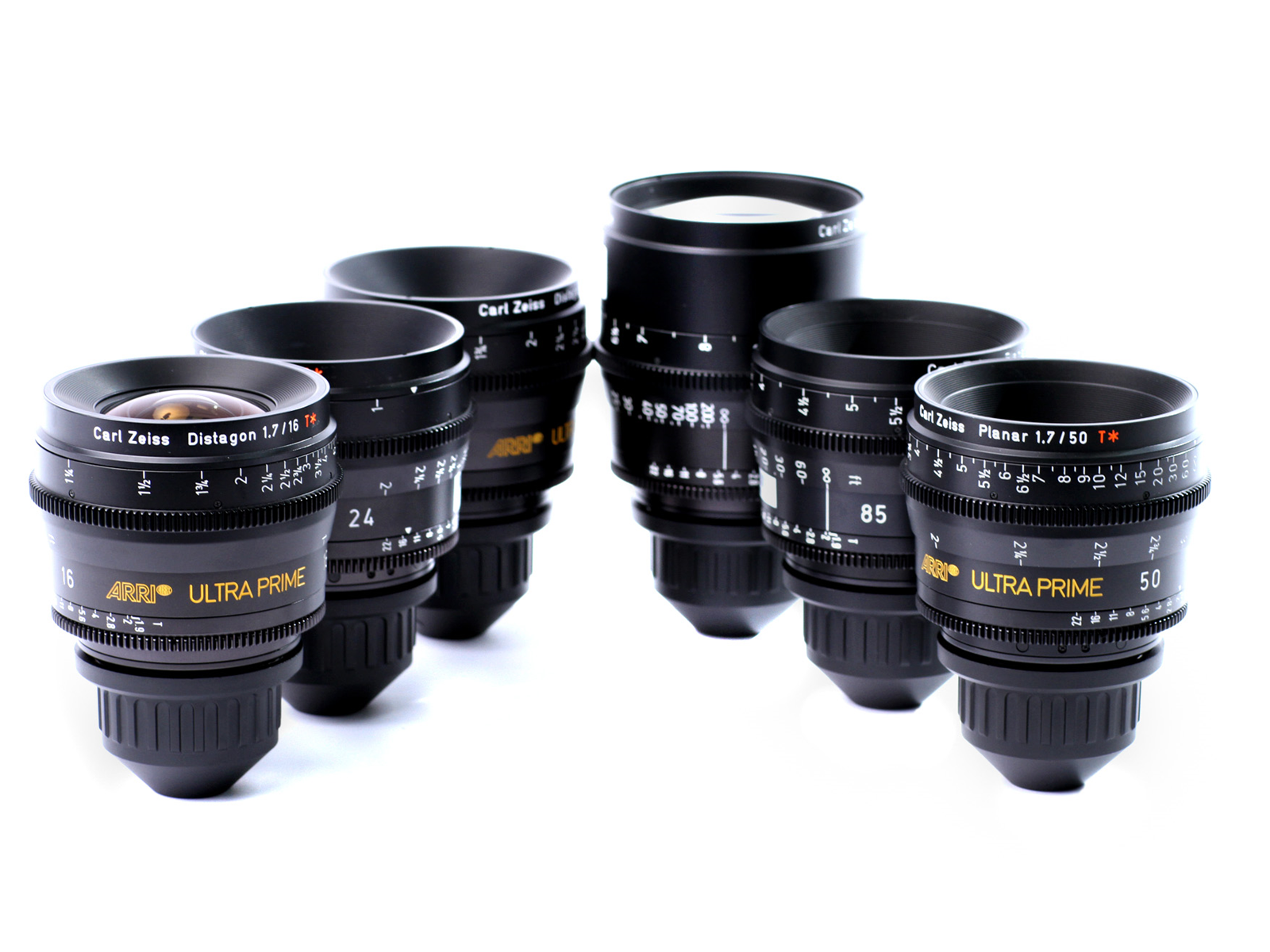

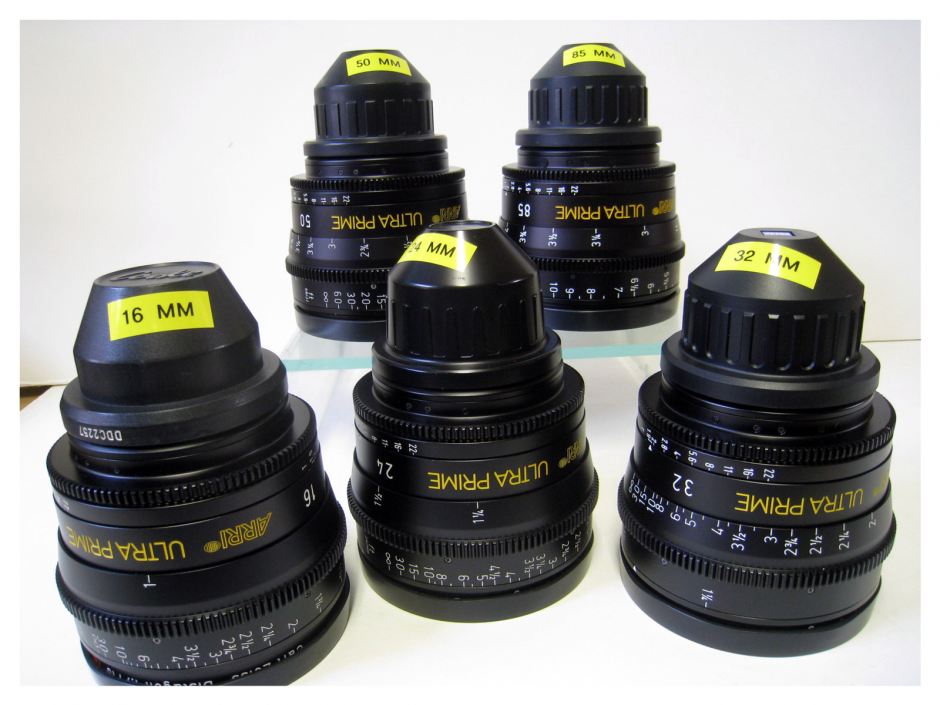

Ultra Prime Lenses

Highest performance over the entire focusing range

Ultra Prime lenses have the widest focal range of prime lenses giving you the flexibility to get the coverage you want. The Ultra Prime lenses are lightweight standard speed lenses that are a perfect optical match to the high speed Master Prime lenses. They have been developed in a cooperation of ARRI and Carl Zeiss.

  • Well controlled distortion and breathing
  • Superior close focus ability
  • Floating elements design
  • Easy-to-read calibrated scales
  • Uniform diameters
  • Particularly robust and easy to service

Application

16 high performance prime lenses offer the widest set available: from the Ultra Prime 8R extreme wide angle lens to the best telephoto lens designed specifically for motion pictures, the Ultra Prime 180 mm, giving you the flexibility to get the coverage you want.

Technical Data

Ultra Prime   Aperture Close Focus1 Length2 Front diameter Weight AOV3
UP 8R/T2.8 T2.8 to T22 0.35 m / 14” 130 mm / 5.12” 134 mm / 5.3” 2.0 kg / 4.4 lbs 114.0°
UP 10 mm/T2.1 T2.1 to T22 0.35 m / 14” 143 mm / 5.63” 156 mm / 6.1” 2.9 kg / 6.4 lbs 102.1°
UP 12 mm/T2 T2 to T22 0.3 m / 12” 140 mm / 5.51” 156 mm / 6.1” 2.0 kg / 4.4 lbs 92.6°
UP 14 mm/T1.9 T1.9 to T22 0.22 m / 9” 112 mm / 4.41” 114 mm / 4.5” 1.8 kg / 4.0 lbs 82.6°
UP 16 mm/T1.9 T1.9 to T22 0.25 m / 10” 94 mm / 3.70” 95 mm / 3.7” 1.2 kg / 2.6 lbs 75.2°
UP 20 mm/T1.9 T1.9 to T22 0.28 m / 11” 91 mm / 3.58” 95 mm / 3.7” 1.2 kg / 2.6 lbs 65.0°
UP 24 mm/T1.9 T1.9 to T22 0.3 m / 12” 91 mm / 3.58” 95 mm / 3.7” 1.0 kg / 2.2 lbs 55.8°
UP 28 mm/T1.9 T1.9 to T22 0.28 m / 11” 91 mm / 3.58” 95 mm / 3.7” 1.0 kg / 2.2 lbs 48.4°
UP 32 mm/T1.9 T1.9 to T22 0.35 m / 14” 91 mm / 3.58” 95 mm / 3.7” 1.1 kg / 2.4 lbs 43.0°
UP 40 mm/T1.9 T1.9 to T22 0.38 m / 15” 91 mm / 3.58” 95 mm / 3.7” 1.0 kg / 2.2 lbs 34.7°
UP 50 mm/T1.9 T1.9 to T22 0.6 m / 2′ 91 mm / 3.58” 95 mm / 3.7” 1.0 kg / 2.2 lbs 27.2°
UP 65 mm/T1.9 T1.9 to T22 0.65 m / 2′ 3” 91 mm / 3.58” 95 mm / 3.7” 1.1 kg / 2.4 lbs 21.8°
UP 85 mm/T1.9 T1.9 to T22 0.9 m / 3′ 91 mm / 3.58” 95 mm / 3.7” 1.2 kg / 2.6 lbs 17.1°
UP 100 mm/T1.9 T1.9 to T22 1 m / 3’3” 91 mm / 3.58” 95 mm / 3.7” 1.2 kg / 2.6 lbs 13.9°
UP 135 mm/T1.9 T1.9 to T22 1.5 m / 5′ 119 mm / 4.69” 95 mm / 3.7” 1.6 kg / 3.5 lbs 10.5°
UP 180 mm/T1.9 T1.9 to T22 2.6 m / 8’6” 166 mm / 6.54” 114 mm / 4.5” 2.6 kg / 5.7 lbs 7.9°
