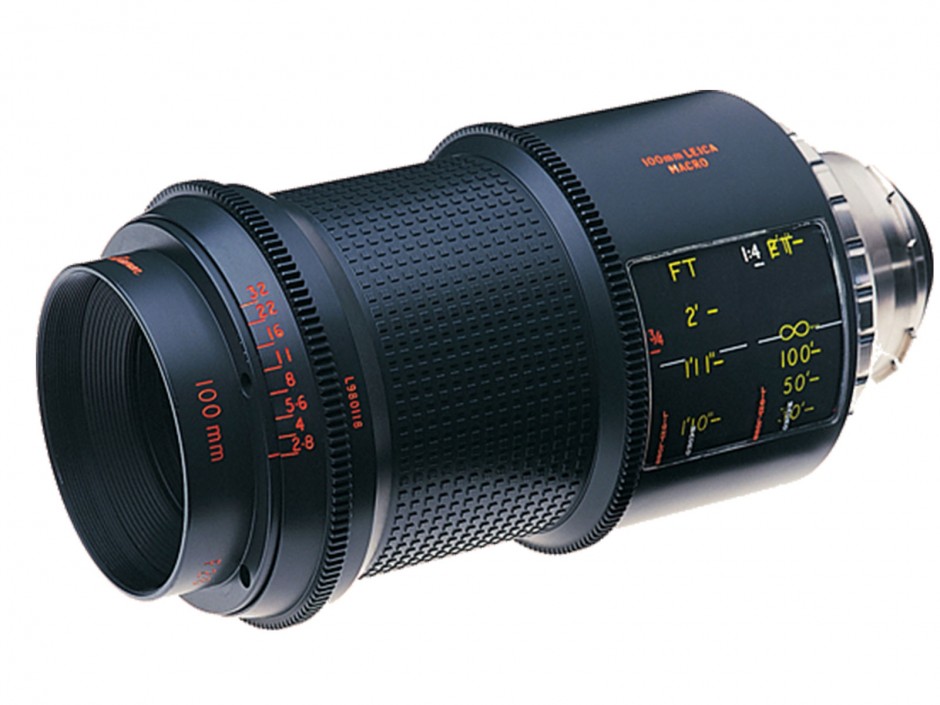

Leica 100mm Macro F2.8 PL Mount 1:1.2

The Apochromatic correction of this lens ensures exceptionally good imaging performance over the entire focusing range from infinity to 1’4′ (0.40m) at a Macro ratio of 1:1.2. With its high speed for a Macro lens, this objective lends itself to a particularly varied field of applications.

Additional product information

Handbook Download
Information
LENS Leica 100mm MACRO LENS
Nominal Focal Length 100mm
F/No. F2.8
Max Stop F16
Front Diameter 100mm
Weight 1.8kg
Iris Gearing Ø107mm 32DP 132 Teeth
Focus Gearing Ø107mm 32DP 132 Teeth
Angular FOV (Academy) 15.0 x 10.9 (Ø18.5)mm
Min Distance (scaled) 1 foot 4 inches
Lens construction

(elements/components)

7 elements, 5 groups
Macro 1:1
Back Focus adjustment In PL Mount Shims / In B4 Mount adjustable
